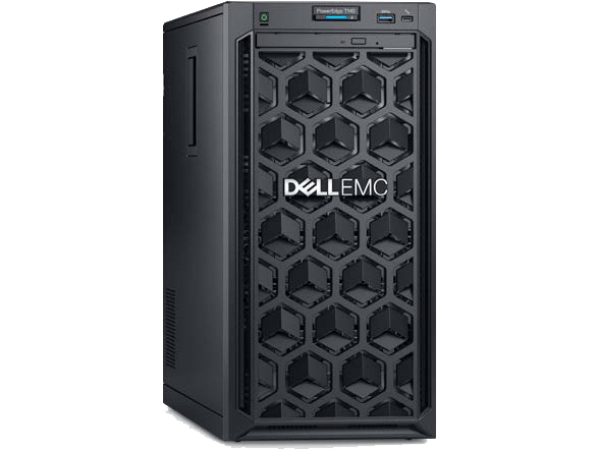

Dell PowerEdge T140

Thông tin sản phẩm Máy chủ Dell PowerEdge T140 4x3.5"

PowerEdge T140

Features

Technical Specification

Processor

1 processor from the following: Intel® Xeon® E-2100 product family, Intel Pentium®, Intel Core i3®, Intel Celeron®

Memory

4x DDR4 DIMM slots, supports UDIMMs, speeds up to 2666MT/s, 64GB max. supports registered ECC.

Storage controllers

Internal controllers: PERC H730P, H330, HBA330 (non-RAID)

Software RAID: PERC S140

External HBAs: 12Gbps SAS HBA (non-RAID)

Boot Optimized Storage Subsystem: 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)

Drive bays

Up to 4 x 3.5” cabled bays

Power supplies

Single cabled 365W PSU

Dimensions

Form factor: Mini tower server

Chassis height: 360mm (14.17 in) Chassis width: 175mm (6.89 in) Chassis depth: 454 mm (17.9 in)

Chassis weight: 11.84 kg (26.10 lb.)

Embedded management

iDRAC9 with Lifecycle Controller iDRAC Direct

iDRAC RESTful API with Redfish

OpenManage™ Software

OpenManage Enterprise OpenManage Essentials OpenManage Power Center

OpenManage Mobile

(requires OM Enterprise or OM Essentials)

Integrations and connections

Integrations:

Microsoft® System Center VMware® vCenter™

BMC Truesight (available from BMC) Red Hat Ansible

Connections:

Nagios Core & Nagios XI Micro Focus

Operations Manager i (OMi) IBM Tivoli Netcool/OMNIbus

Tools

iDRAC Service Module OpenManage Server Administrator Dell EMC Repository Manager Dell EMC System Update

Dell EMC Server Update Utility Dell EMC Update Catalogs Dell EMC RACADM CLI

IPMI Tool

Security

TPM 1.2/2.0 optional Cryptographically signed firmware Silicon Root of Trust

Secure Boot

System Lockdown (requires OpenManage Enterprise) Secure Erase

I/O & ports

Networking options: 2 X 1GbE LOM

Front Ports: 1x USB 3.0, 1x iDRAC micro USB 2.0 management port

Rear Ports: 2x USB 3.0, 4x USB 2.0, VGA, serial connector Internal USB: 1x internal USB 3.0

4 PCIe Slots:

1x8 Gen3 (x16 connector) FH/HL 1x8 Gen3 (x8 connector) FH/HL 1x4 Gen3 (x8 connector) FH/HL 1x1 Gen3 (x1 connector) FH/HL

Supported operating systems

Certify XenServer Citrix® XenServer®

Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux

Ubuntu Server

SUSE® Linux Enterprise Server VMware® ESXi

For specifications and interoperability details, see Dell.com/OSsupport.

OEM-ready version available

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com/OEM.

Recommended support

ProSupport Plus for critical systems or ProSupport for comprehensive hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell EMC representative today for more information. Availability and terms of Dell EMC Services vary by region. For more information, visit Dell.com/ServiceDescriptions.
