Dell PowerEdge R540
CPU hỗ trợ : Intel Xeon Silver 4210
RAM hỗ trợ : 16GB RDIMM
Dung lượng : HHD 2TB 7.2K NLS 3.5" Hot-Plug
Công suất nguồn: 750W PSU

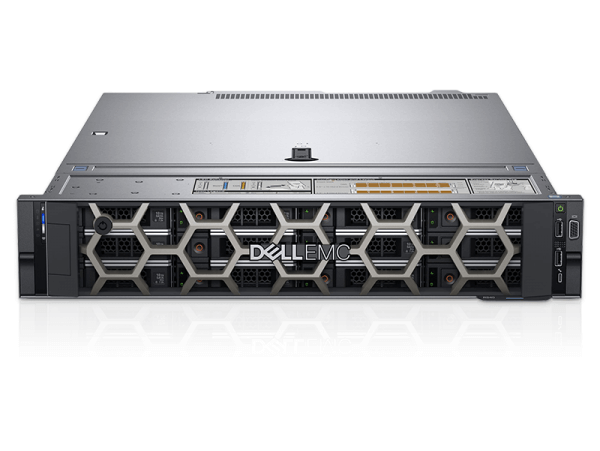

Thông tin sản phẩm Máy chủ Dell PowerEdge R540 8x3.5"
PowerEdge R540
Features
Technical Specification
Processor
Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 20 cores per processor
Memory
16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1TB max1
Storage controllers
Internal controllers: PERC H330, H730P, H740P, HBA330, Software RAID (SWRAID) S140 Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID): H840
External HBAs (non-RAID): 12 Gbps SAS HBA
Drive bays
Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 168TB Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD max 28TB Optional DVD-ROM, DVD+RW
Power supplies
Fans
Platinum 495W, 750W, 750W 240V HVDC², 1100W, 1100W 380V HVDC²
Hot plug power supplies with full redundancy option Up to six fans
Sizing
Form factor: Rack (2U)
Height: 86.8mm (3.41”)
Width*: 434mm (17.08”)
Depth*: 693.81mm (27.31”) Weight: 29.68kg (65.43lbs.)
*Dimensions do not include bezel.
Bezel
Optional LCD or security bezel
Embedded / At-Server
iDRAC9
iDRAC Direct
iDRAC REST API with Redfish Quick Sync 2 BLE/wireless module
Consoles & Mobile
OpenManage Enterprise OpenManage Essentials
OpenManage Mobile OpenManage Power Center
Integrations
OpenManage integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight, Red Hat® Ansible® Modules
Connections
Nagios® Core and Nagios® XI, IBM Tivoli® Netcool/OMNIbus Micro Focus Operations Manager I
Tools
Dell EMC Repository Manager Dell EMC Update Package Dell EMC System Update
Dell EMC Server Update Utility
iDRAC Service Module OpenManage Server Administrator OpenManage Storage Services
Security
TPM 1.2/2.0, TCM 2.0 optional Cryptographically signed firmware Silicon Root of Trust
Secure Boot
System Lockdown (requires OpenManage Enterprise) System Erase
I/O & Ports
Network options: 2 x 1GbE LOM + (optional) LOM Riser 2 x 1GbE or 2 x 10GbE SFP+ or 2 x 10GbE BaseT Front ports: 1 x Dedicated iDRAC Direct USB, 1 x USB 2.0, 1 x Video
Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x Video
With Optional Riser: Non-rear storage config: 1xFH/FL + 1xHH/HL (2U Right riser) slots + 3 HH/HL slots
Rear storage config: 1xHH/HL (1U Left Riser) + 1xHH/HL (1U Right risers) slot or 1xHH/HL (1U Left Riser) + 1x FH/HL (1U Right riser)
Supported operating systems
Canonical® Ubuntu® Server LTS Citrix® Hypervisor
Microsoft Windows Server® LTSC with Hyper-V Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server VMware® ESXi
For specifications and interoperability details, see Dell.com/OSsupport.
OEM-ready version available
From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com/OEM.
Dell Financial Services
Deliver results with easy financing. Explore financial options that move at the speed of business. For more information, visit https://www.emc.com/products/how-to-buy/global-financial-services/index.htm.*
Recommended support and services
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visit dell.com/itlifecycleservices.
Dell Financial Services
Deliver results with easy financing. Explore financial options that move at the speed of business.
For more information, visit https://www.emc.com/products/how-to-buy/global-financial-services/index.htm.*
1 768GB max memory is recommended for performance optimized configurations
2 Available in China only
